• ZI-7828 Sound Meter -Data Logger

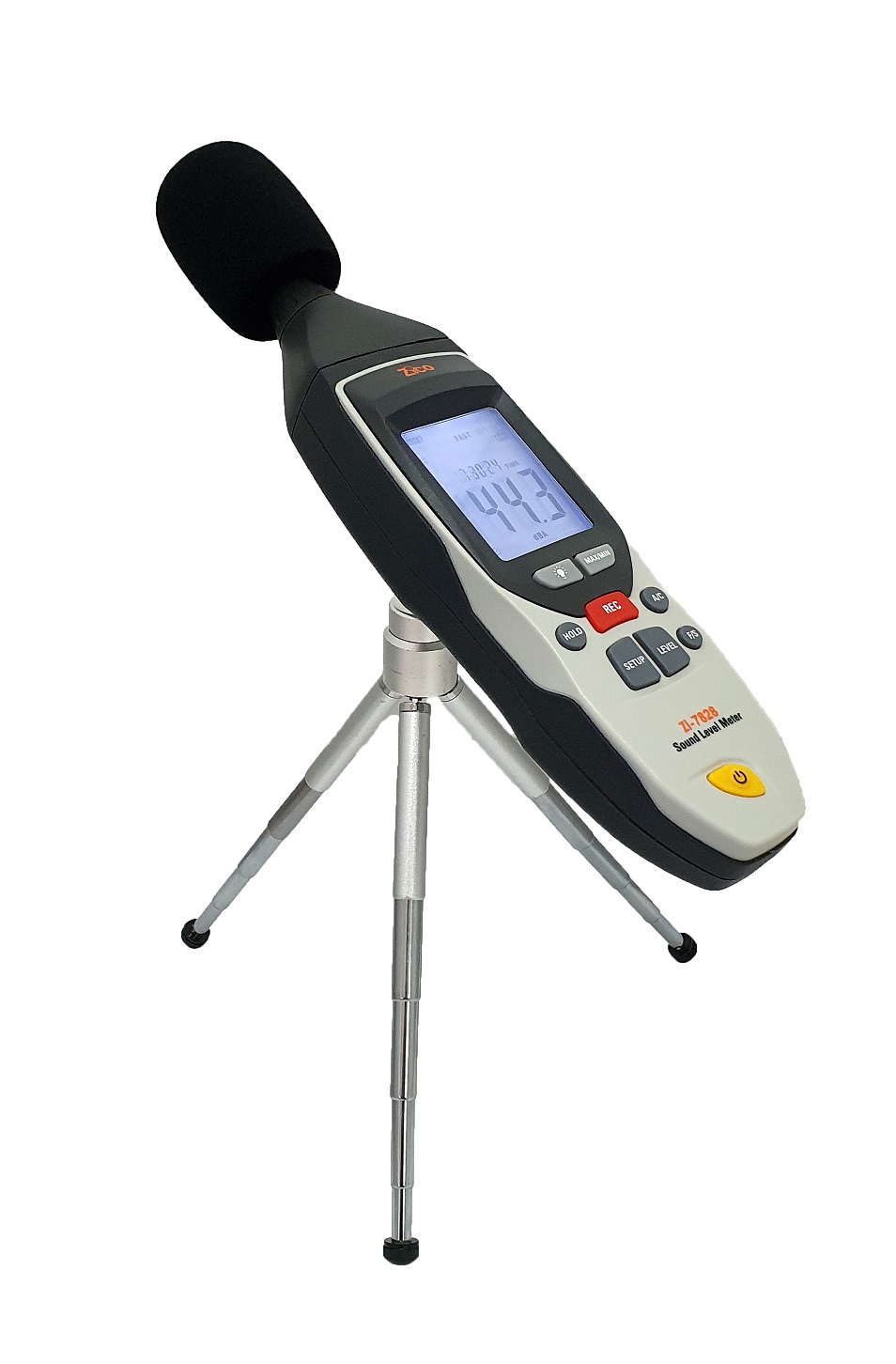

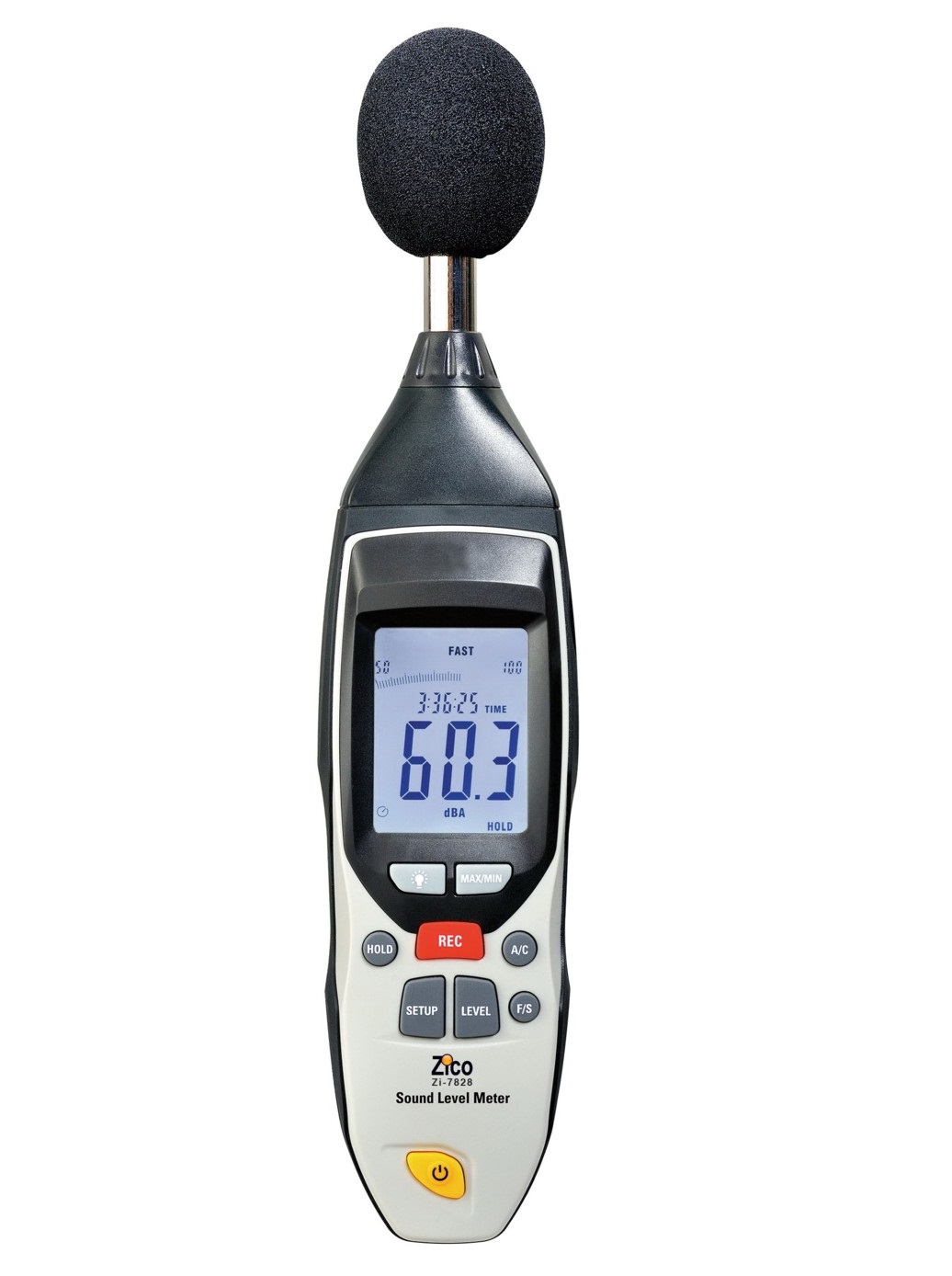

ZI-7828 Sound Meter -Data Logger

* Sound Level Meter
* Sound Data Logger
* PC Interface
* Display backlight
* Adjustable Alarm
* Meet IEC 61672-1 Class II for sound meter
* Meet ANSI S1.4 Type 2
* Max / Min measurements
* Over range display
* Fast & Slow response
* Analog AC/DC outputs for connection to:
* Frequency analyzer or X-Y shaft recorder

Features

* Memory for 32,700 readings
* ±1.4dB Accuracy
* Frequency range: 31.5Hz-8KHz
* Dynamic rang: 50dB
* Level Range:
                    Lo 30-80dB
                    Med 50-100dB
                    Hi 80-130dB
                    Auto 30-130dB
* Time weighting: Fast 125mS, Slow 1s
* Resolution 0.1dB
* Display update: 2 times/sec
* Analog Output AC/DC output:
* AC 1V RPS
* DC 10mV/dB

* Weight: 350g

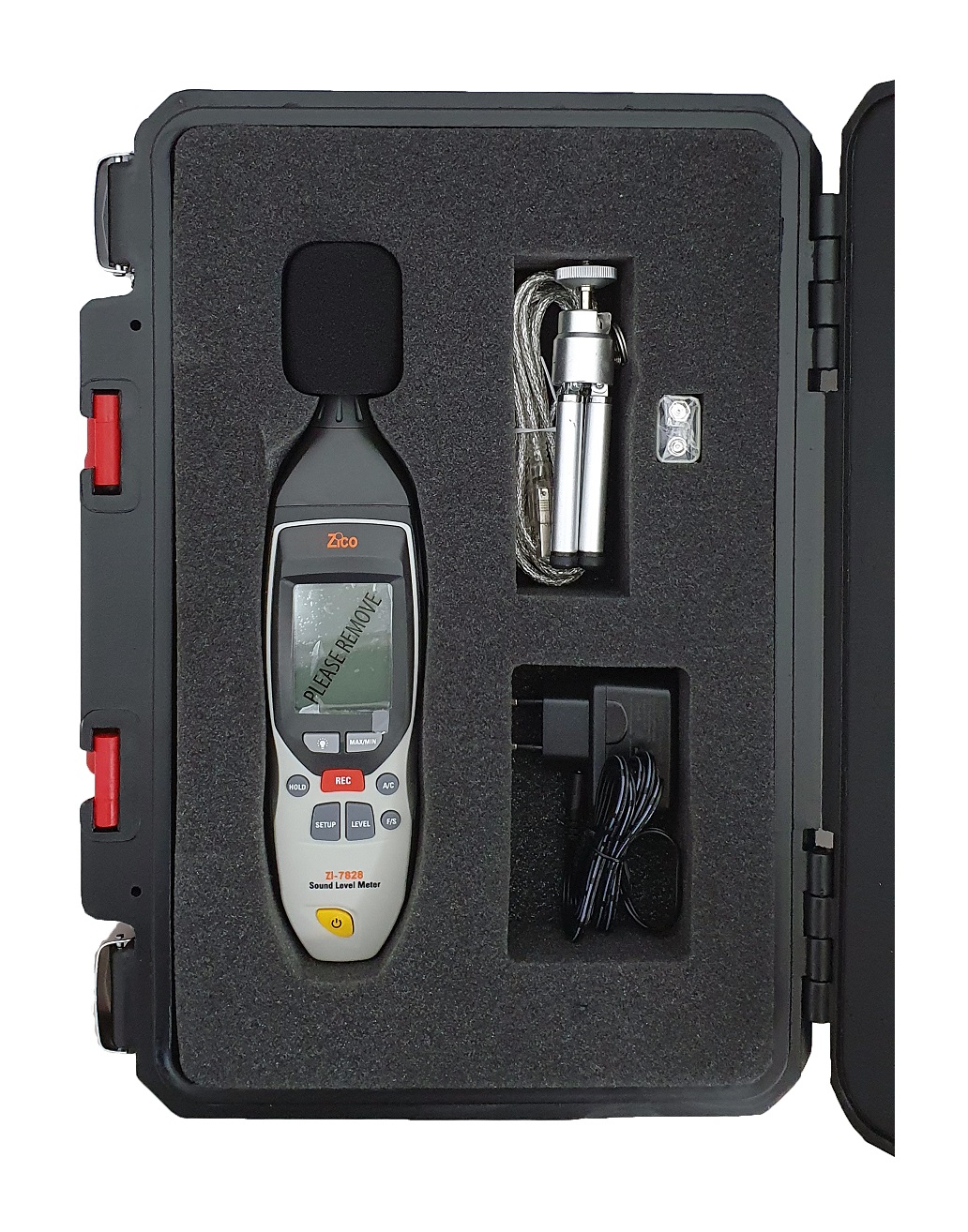

*Accessories:
    Battery
    Screwdriver
    Audio plug
    Software
     USB cable
     Tripod
     DC 9V power supply

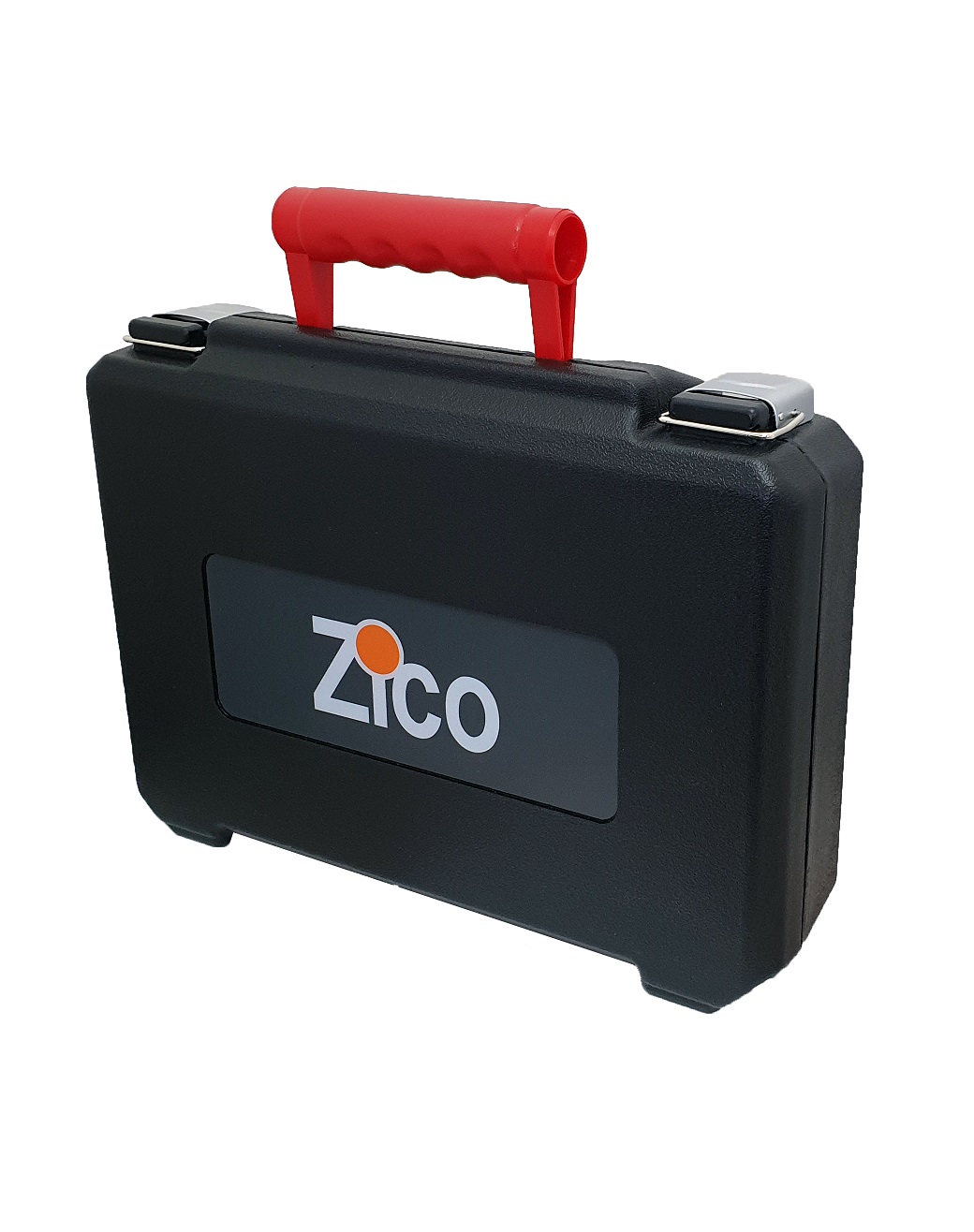

     Carrying case
