• ZI-9200 Loop Tester
  • ZI9200C

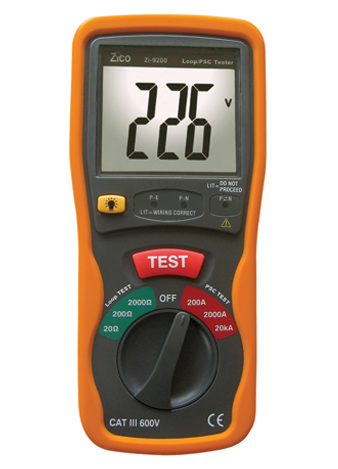

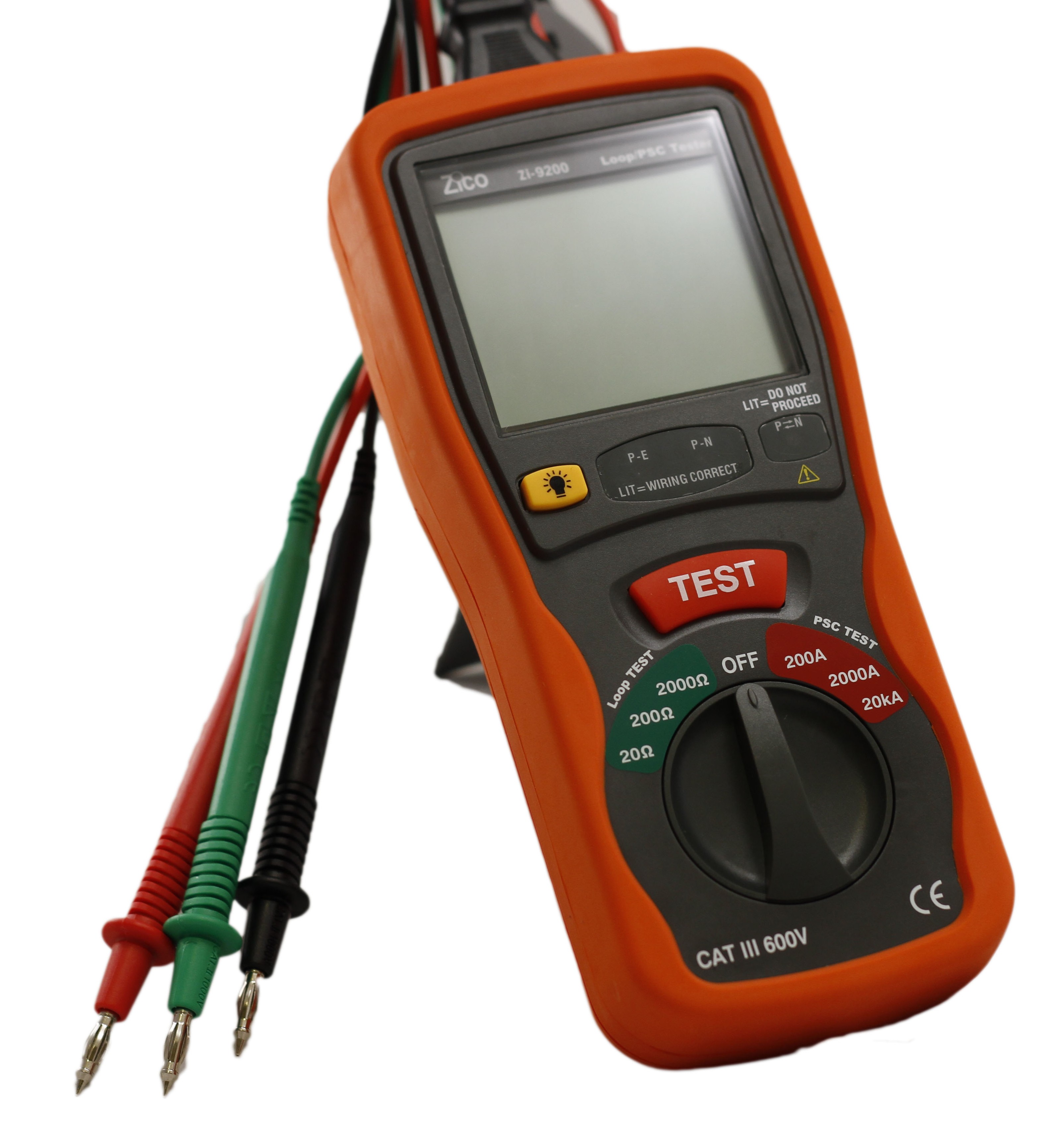

ZI-9200 Loop Tester

3 LEDs for checking correct wiring status
Automatic lock out if test resister overheats
Visual indication of phase and neutral wiring at socket
Double molded plastic housing

Features

20/200/2000 W  Loop impedance

AC Test period:
20Ω 20mS
200Ω 40mS
2000Ω 280mS

AC Test current:
20- 25A
200- 2.3A
2000W - 15mA

Voltage: 50V ~ 250V
Operating Voltage: 195V ~ 253V 50Hz

Size (H*W*D): 200mm x 92mm x 50mm
Weight: 582g
Accessories: Test leads, Carrying case, x6 AA batteries

Downloads

Product Manual


Product full specifications
