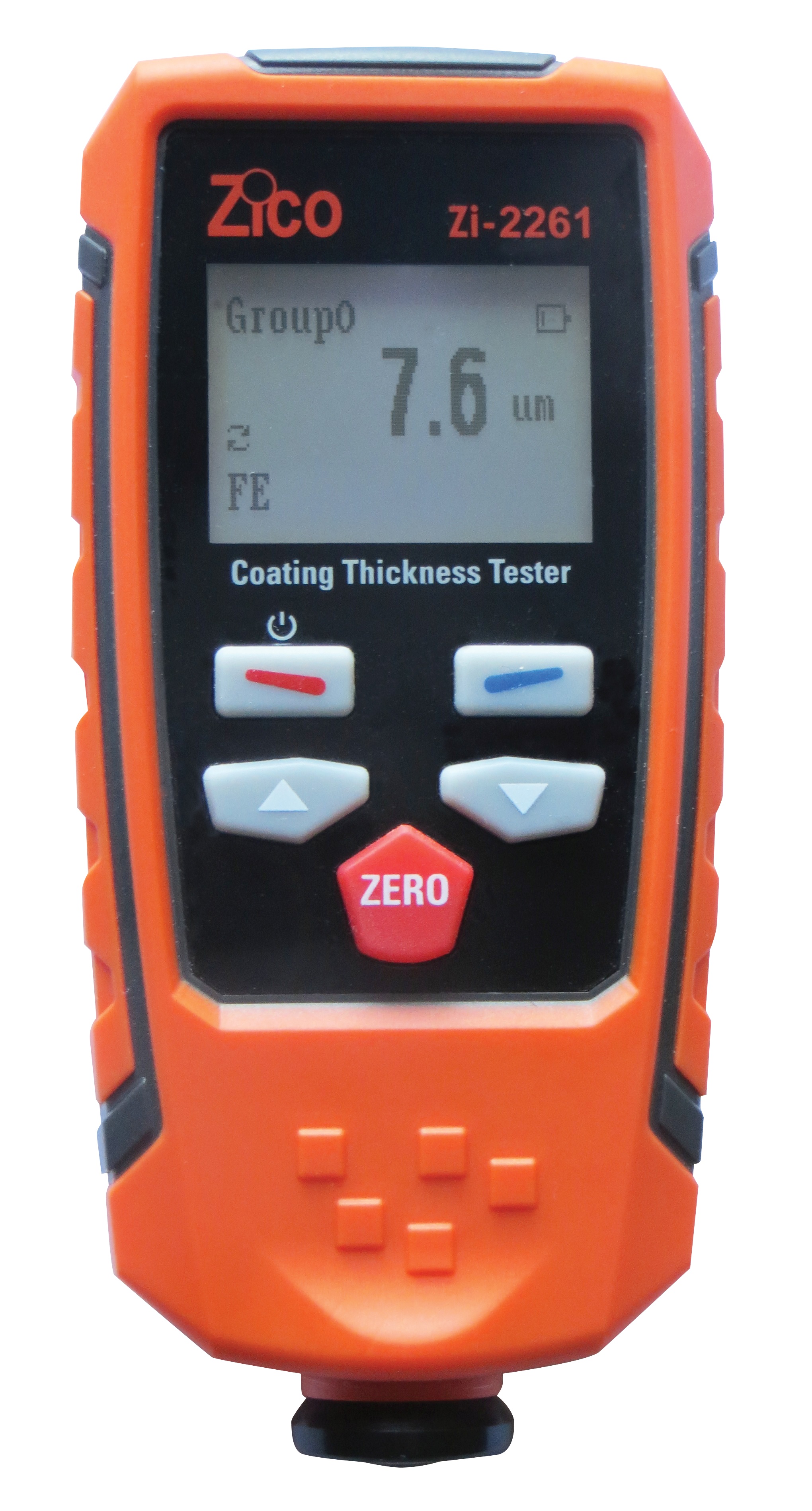

ZI-2261 Coating Thickness Meter
ZI-2261 Coating thickness Meter
Fast Sensor
New Technology
Memory for 1500 reading
Dual Technology
Automatic selection - Magnetic & Non Magnetic coating.
USB interface for PC software.
Featuers
Working Principle : Magnetic Indication (F ) and Eddy Current ( N)
Range up to 1350μm
Tolerance ±2.5% + 2m
Low range Precision 0.1μm
Min Curvanture area 3mm
Dim of min Area 5mm
Size (HxWxD): 110mm x 50mm x 23mm
Weight: 114g

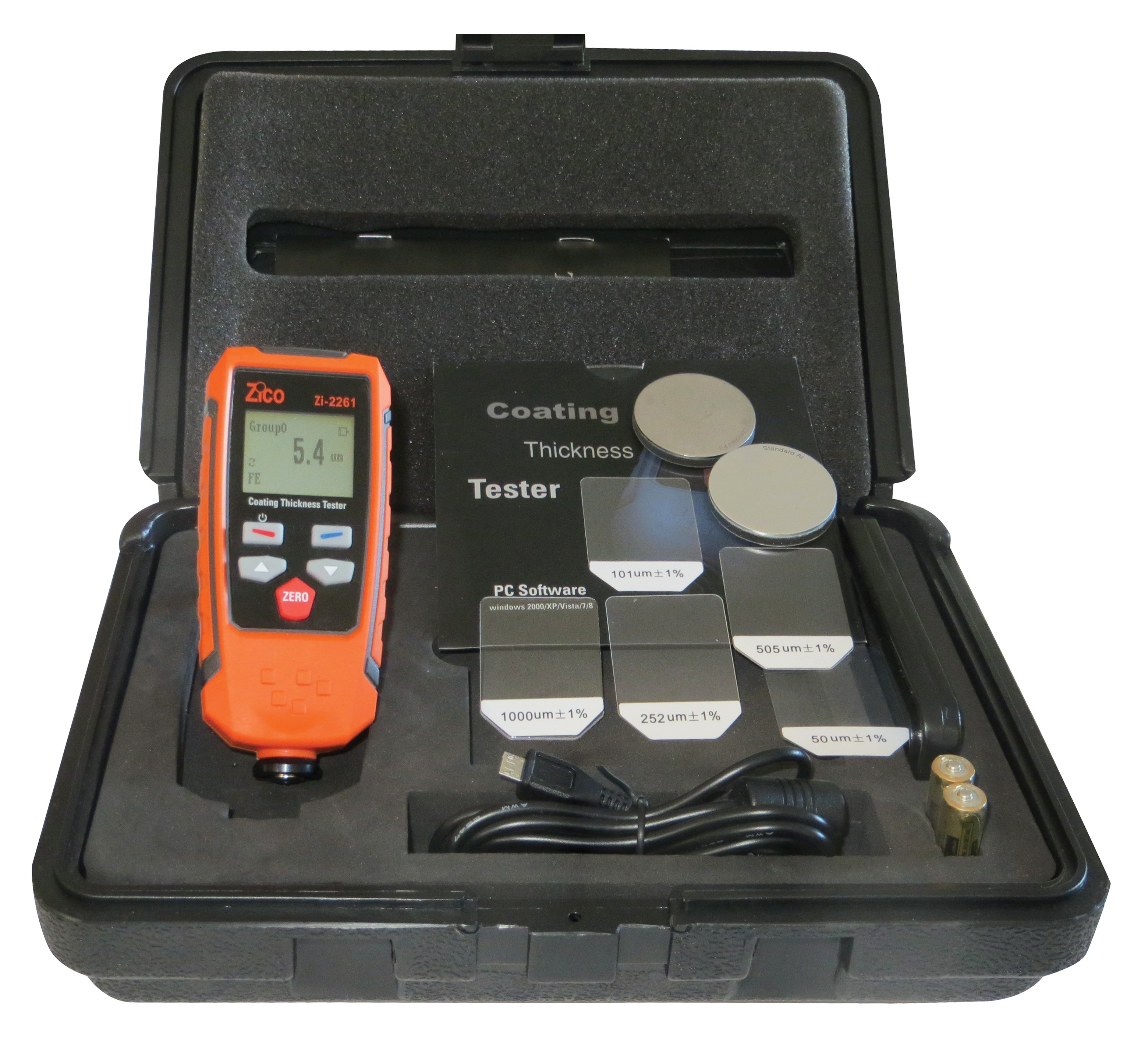

Include in set :
Battery, USB cable, CD software
Calibration Iron ,Calibration Aluminum
